All-Electric Clamp Truck
Highly Integrated and Intelligent Operations
The all-electric clamp truck adopts a one click intelligent handle control, which easily controls the vehicle's walking, lifting, and flipping. The operator only needs to use the handle to complete all actions. Combined with the intelligent controller acceleration system, not only is it easy to operate, but it also achieves smooth start-up and precise fine-tuning, greatly reducing the difficulty of operation and greatly improving work efficiency.
Strong Specialization, Equipped with Clamping and Flipping Functions
The all-electric clamp truck is designed specifically for cylindrical materials such as international iron drums, plastic drums, coils, etc. It is equipped with an adjustable clamping device that can firmly clamp the drum body and prevent slipping. Its biggest feature is the support for 360 degree automatic flipping, which can achieve fully automatic material pouring, which is the core function of this product.
Higher Security
Equipped with automatic clamping and flipping control, it avoids the risks of tipping, leakage, or injury caused by manual bucket flipping. High performance hydraulic system, smooth and reliable lifting and lowering; Effectively preventing material shaking, especially suitable for handling hazardous chemicals or heavy materials.
Long lasting battery life, environmentally friendly and efficient
The all-electric clamp truck is powered by a large capacity battery, which not only has strong endurance, but also supports long-term continuous operation. Reduce the time loss caused by frequent charging.
Construction of Reinforced Steel Materials
The body and key load-bearing components are made of reinforced steel, significantly improving the overall structural strength and durability of the equipment, and extending its service life.
Product Parameters
| Name: | All-electric clamp truck |
| Model | FB15 CF15 |
| Maximum lifting weight Kg (optional) | 1500 1500 |
| Load center mm |
500 |
| Maximum lifting height mm (optional) |
1600 2500 3000 |
| Tire configuration: |
Polyurethane solid tire |
| Total length (when the pedal is retracted) mm approximately mm |
Approximately 2850 |
| Full width mm approximately mm |
Approximately 1800 |
| Height when the door frame is closed mm |
1850 |
| Maximum height of fork lift (including fork frame) mm |
3050 |
| Front suspension mm |
338 |
| Wheelbase mm |
1427 |
| Clamping distance mm |
850-1600 |
| Pedal height above ground mm |
137 |
| Maximum ground clearance height of handle mm |
1470 |
| Minimum ground clearance height of handle mm |
970 |
| Front wheelbase mm |
490 |
| Turning radius (pedal retracted) mm |
1725 |
| Maximum driving speed mm |
3.0/5.0 |
| Climbing ability % |
3 |
| Total weight KG |
~1280 |
| Drive wheel mm |
Φ230*75 |
| Front wheel mm |
Φ80*70 |
| Balance wheel mm |
Φ150*50 |
| Charging machine V/A |
24/210 |
| Drive motor Kw |
2.2 |
| Lifting motor Kw |
2.2 |
| Remarks: | Double door frame/dual hydraulic cylinders on both sides |

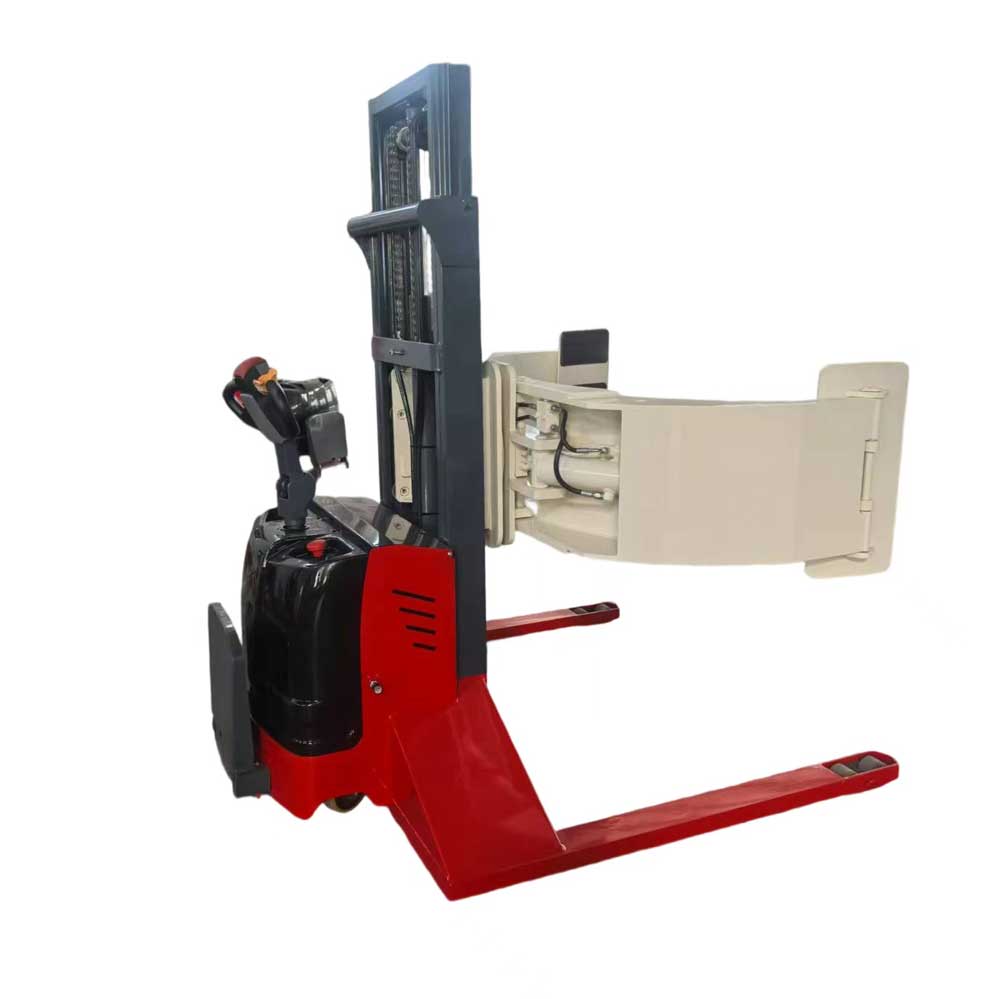

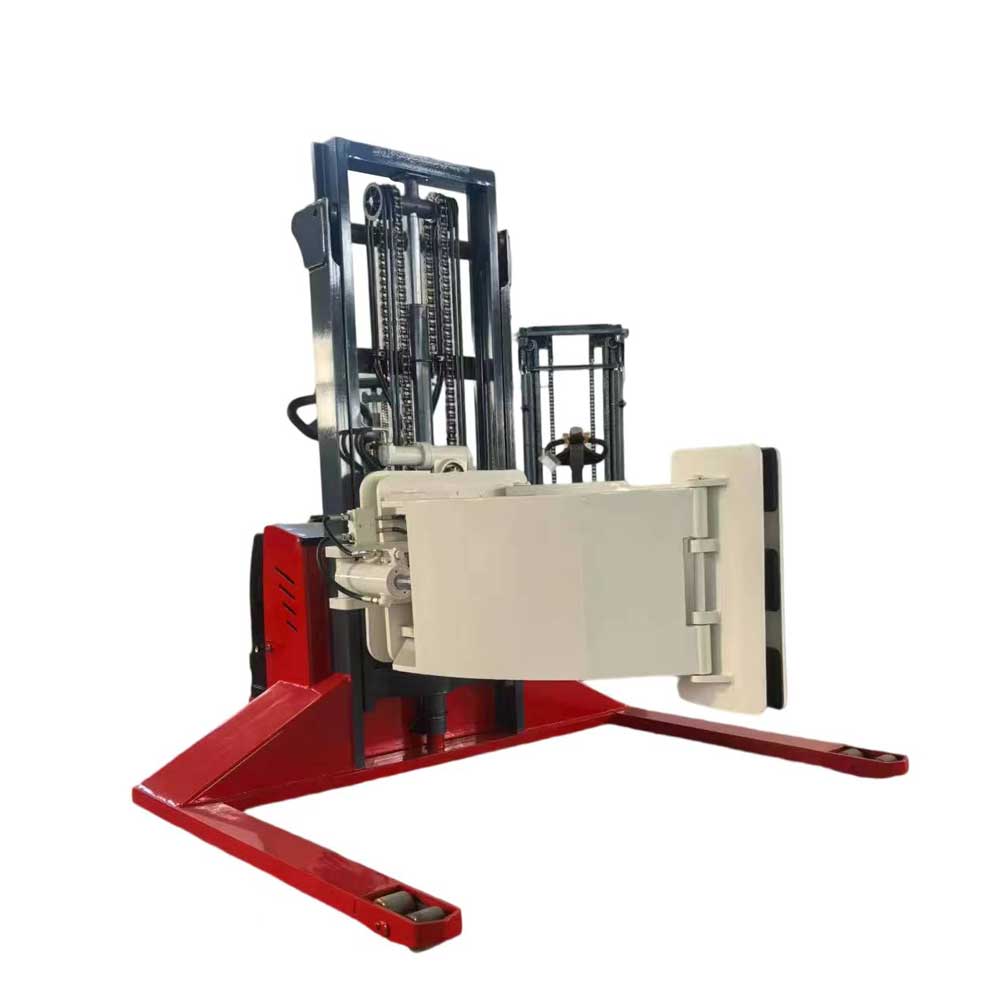

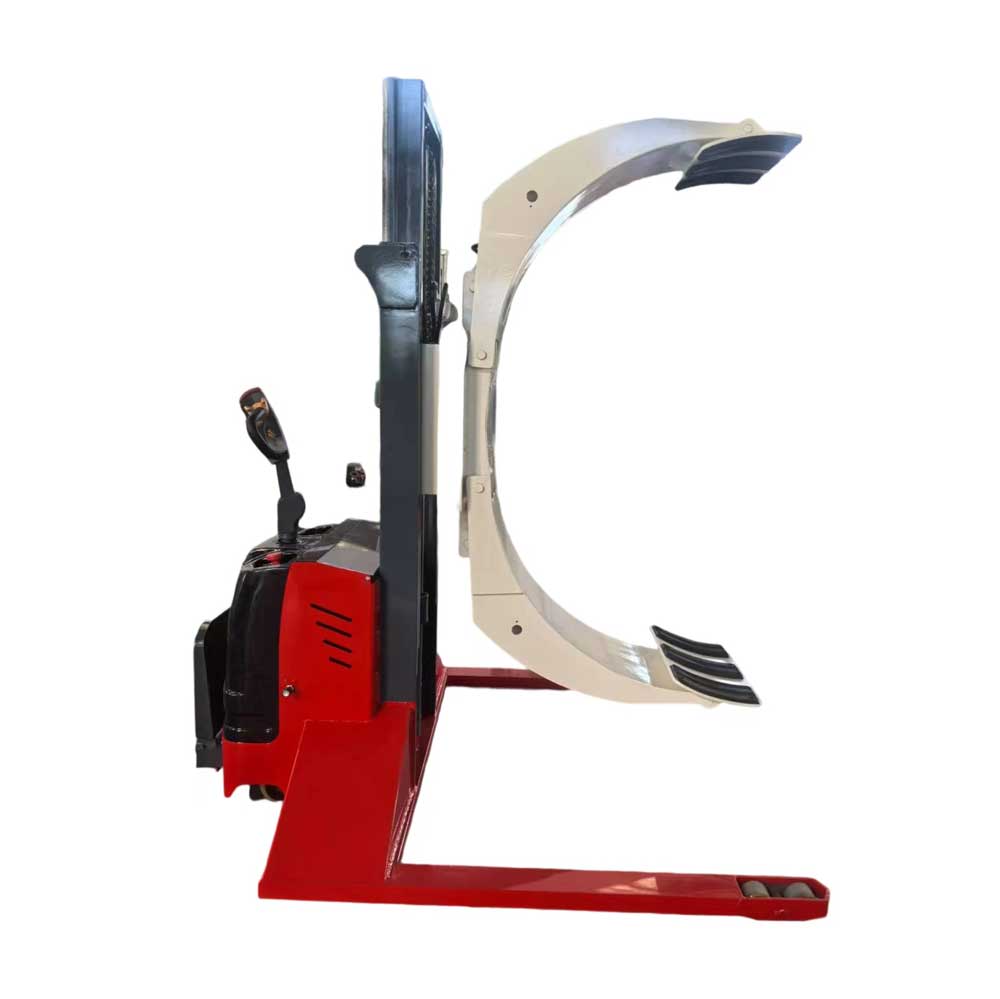

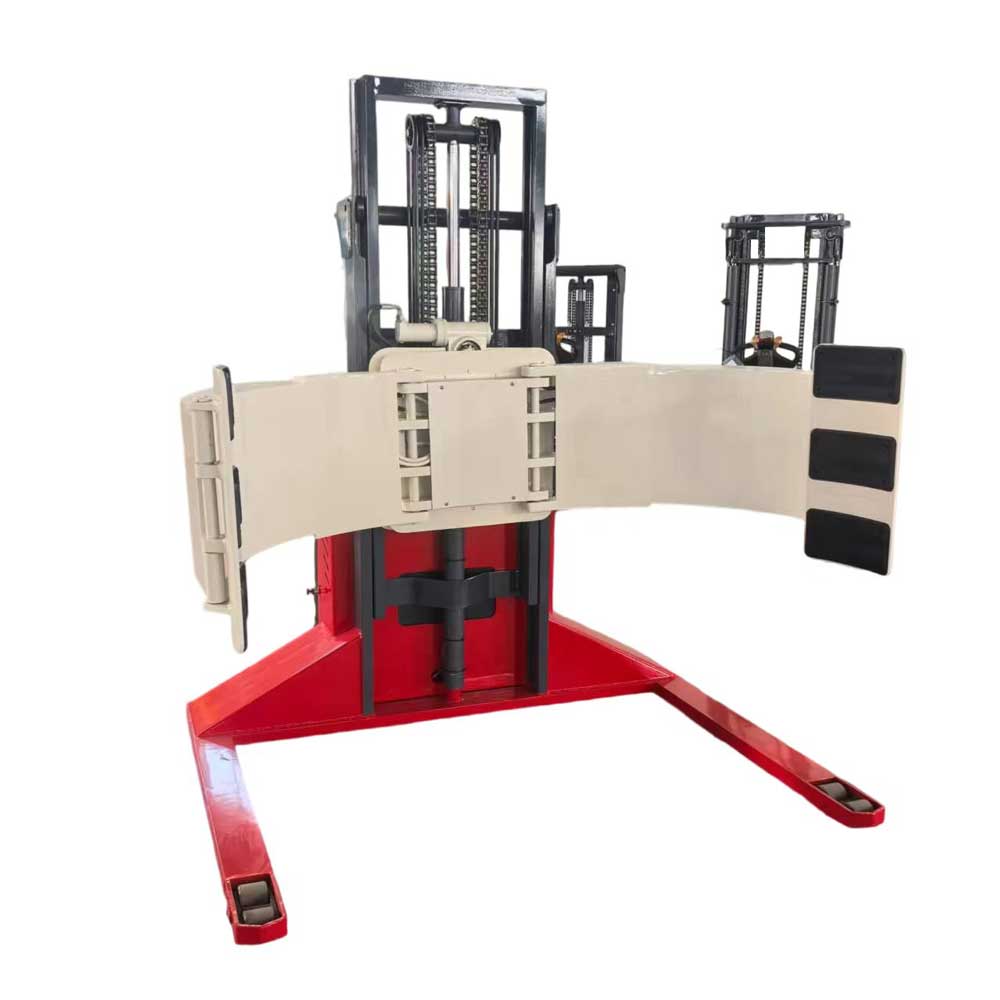

Product Display
