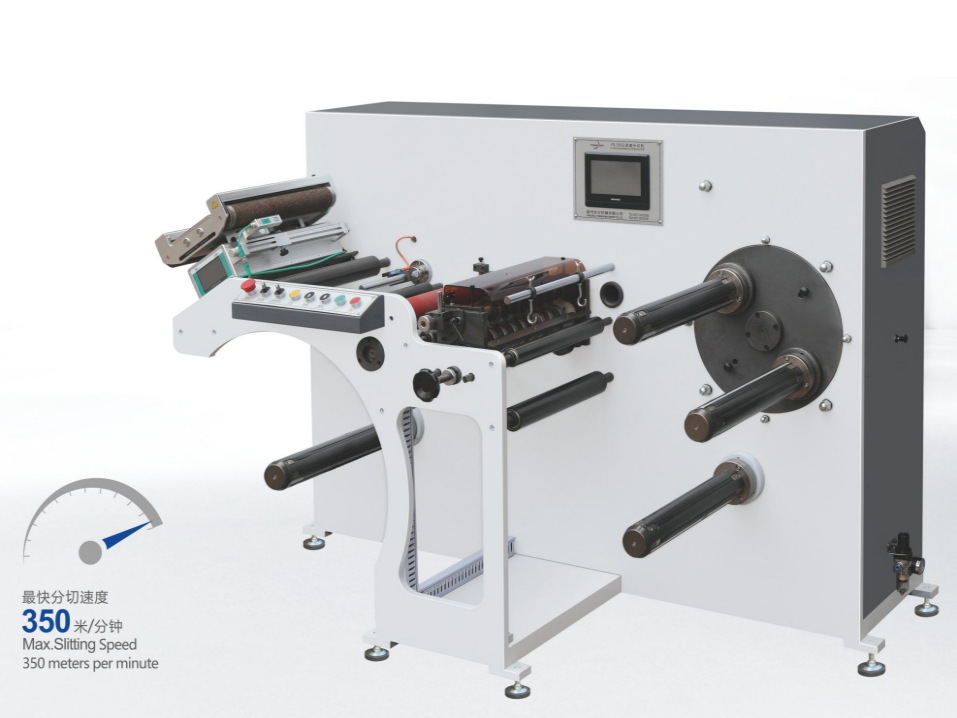

Automatic high-speed Slitting Machine

※Scope Of Application:
High end fully servo winding and unwinding taper tension svstem, imported famousl brand process correction independently developed products, narrow label high-l speed slitting machine. Biao system, dual winding shaft fully automatic rotation andl displacement device, preparation of shaft greatly improves production efficiency.l supports various specifications of shaft expansion and arbitrary exchange, supportsl meter counting, counting, electrostatic treatment, material reduction or parking. ※Features:
1. Unwinding+deviation correction: Adopting an independent uniform taper tension control system, with preset automatic material reduction or parking. Deviationl correction adopts ultrasonic technology Opposite edge guide.
2. Cutting mechanism: Convenient circular knife cutting mechanism, quick disassembly and assembly, optional cutting and exchangedevice, equipped with high-pressure vacuum waste suction system.
3. Reeling: The taper tension control system and rotating device greatly save the timel for changing rolls, ensuring the alignment of labels and paper cores during roll changing.l
4. Counting: The calculation system adopts a well-known German brand, ensuringl a calculation accuracy of one thousandth. Transparent materials need to be purchasedl separately.

  • Model JY-350 JY-450
  • Max.Sliting Speed 350m/min 350m/min
  • Max web width 350mm 450mm
  • Min.Slitting width 16mm 16mm
  • Blades installed 8 sets 8 sets
  • Max.UnwindingDia 700mm 700mm
  • Max.Rewinding Dia 600mm 600mm
  • Air supply 0.8mpa 0.8mpa
  • Weight 750kg 850kg
  • Size(LxWxH) 1915x1035x1225mm 1915x1135x1225mm
Contact us
Product Details

Automatic High-Speed Slitting Machine

The Automatic High-Speed  Slitting Machine is a precision-engineered solution designed for efficient, accurate, and continuous cutting of paper, film, adhesive labels, and flexible packaging materials.
With a servo-driven control system and PLC touch screen interface, it ensures exceptional cutting accuracy, smooth operation, and long-term reliability for high-volume production lines.

Key Features:

  • High-speed performance: Capable of cutting at speeds up to 150 m/min, significantly improving production efficiency.

  • Full automation: Integrates automatic feeding, cutting, and collecting functions for uninterrupted operation.

  • Precision control: Servo motor and photoelectric sensors guarantee cutting accuracy within ±0.1 mm.

  • Smart operation: PLC + touch screen system enables quick setup, real-time monitoring, and parameter storage.

  • Energy-efficient & durable: Optimized design reduces energy consumption while ensuring long-term stability.

  • Flexible application: Compatible with paper rolls, PET, PVC, BOPP, and laminated materials.

    Applications:

    Ideal for industries such as:

    • Printing and packaging

    • Label and adhesive tape production

    • Film and plastic sheet processing

    • Paper and flexible material converting

    The Automatic High-Speed Cutting Machine offers high precision, automation, and stability, making it the perfect solution for manufacturers pursuing efficiency and consistent quality in modern production environments.
