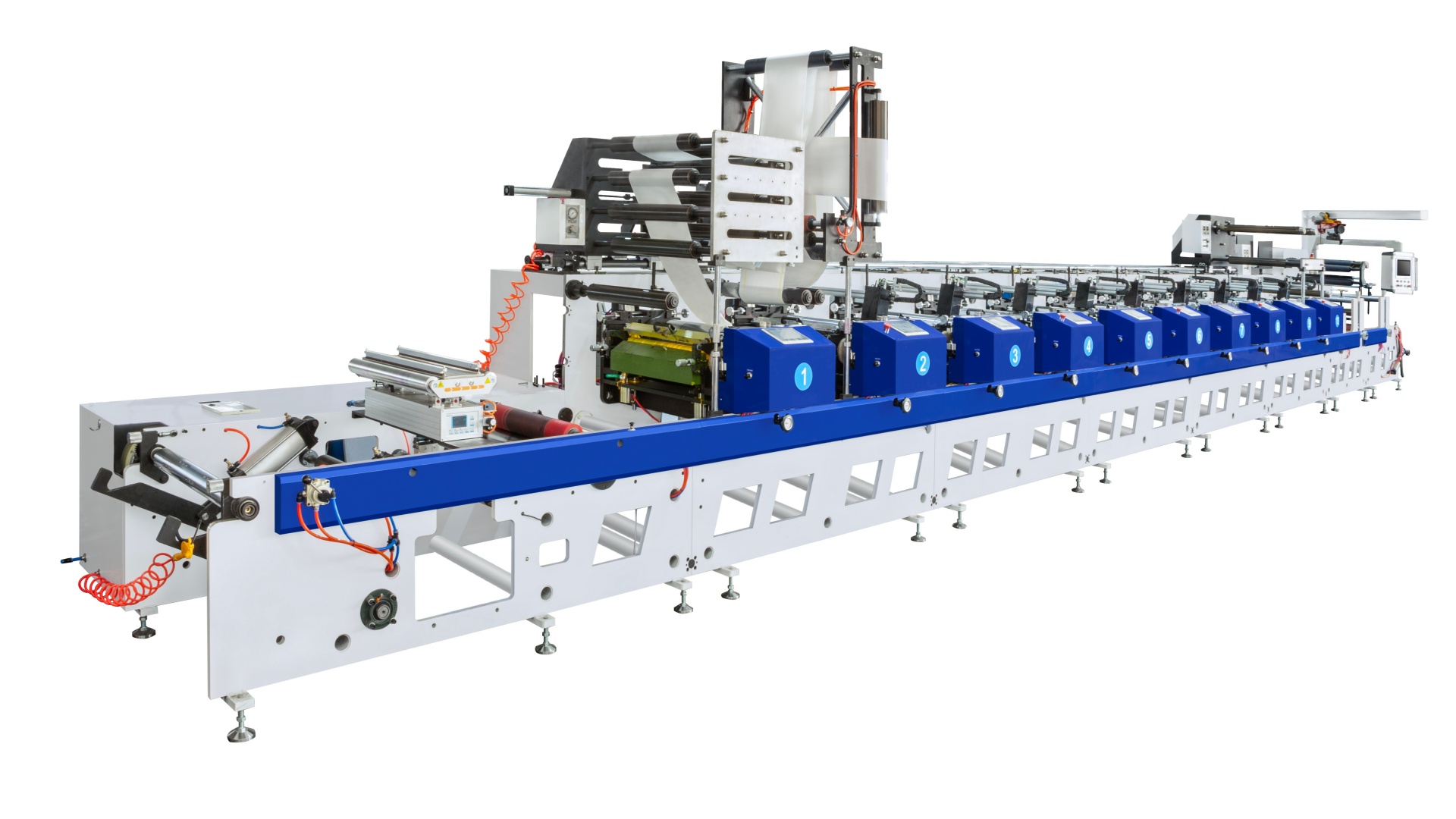

Flexographic printing machine

1. This machine is suitable for printing label，paper，film（pet，opp，pvc），aluminum foil and other material.
2. Adopt ABB SERVO MOTORS, by full servo motors,to keep high accuracy register, speed down and up no change.
3. It can choose water ink,led uv ink and uv ink for printing different kinds of materials.
4. Adopt petal type of printing structure, convenient to change printing cylinder.
5. Hgih speed, max speed is 150m/min

Parameters
B. Technical Specifications
1. Spooling/Unspooling Diameter: 1000 millimeters
2. Printing Repetition Range: 181 millimeters to 600 millimeters
3. Maximum Width: 350 millimeters
4. Maximum Printing Width: 340 millimeters
5. Material Thickness: 30 - 300 grams of Stirling paper, PET 12 - 60 microns, OPP 18 - 60 microns
6. Pitch: 1/8 inch (3.175 millimeters)
7. Printing Plate Thickness: 1.7 millimeters
8. Double-sided Tape Thickness: 0.38 millimeters
9. Printing Accuracy: ±0.1 millimeters
10. Power Supply: 380 volts three-phase 50 hertz
11. Machine Speed: 0 - 180 meters per minute
12. Air Compressor: 100 pounds-force per square inch (0.6 megapascal)
13. Tension Area: 5 - 100 kilograms
14. Spooling Motor: 4 kilowatts
15. Printing Servo Motor: 1.8 kilowatts
16. Pulling Servo Motor: 2.9 kilowatts
