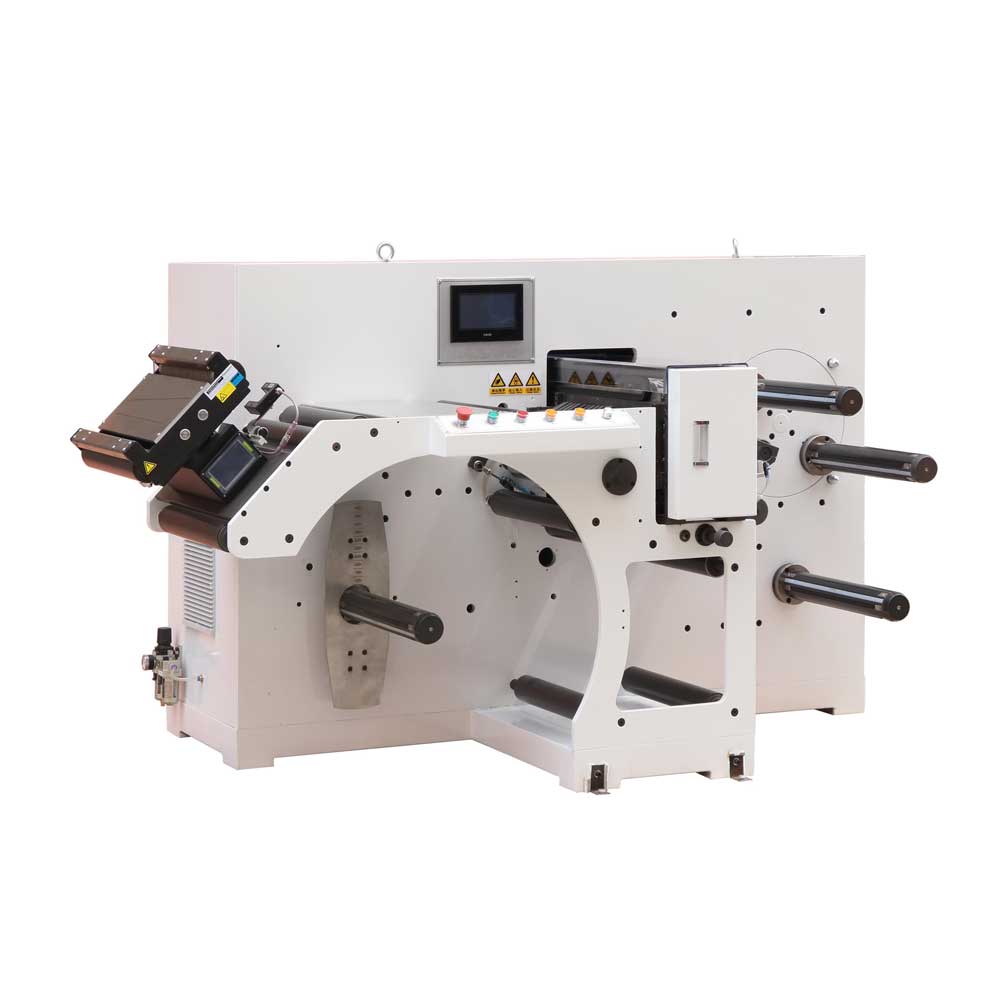

Narrow Web High Speed Slitting Machine
High precision cutting, quality assurance

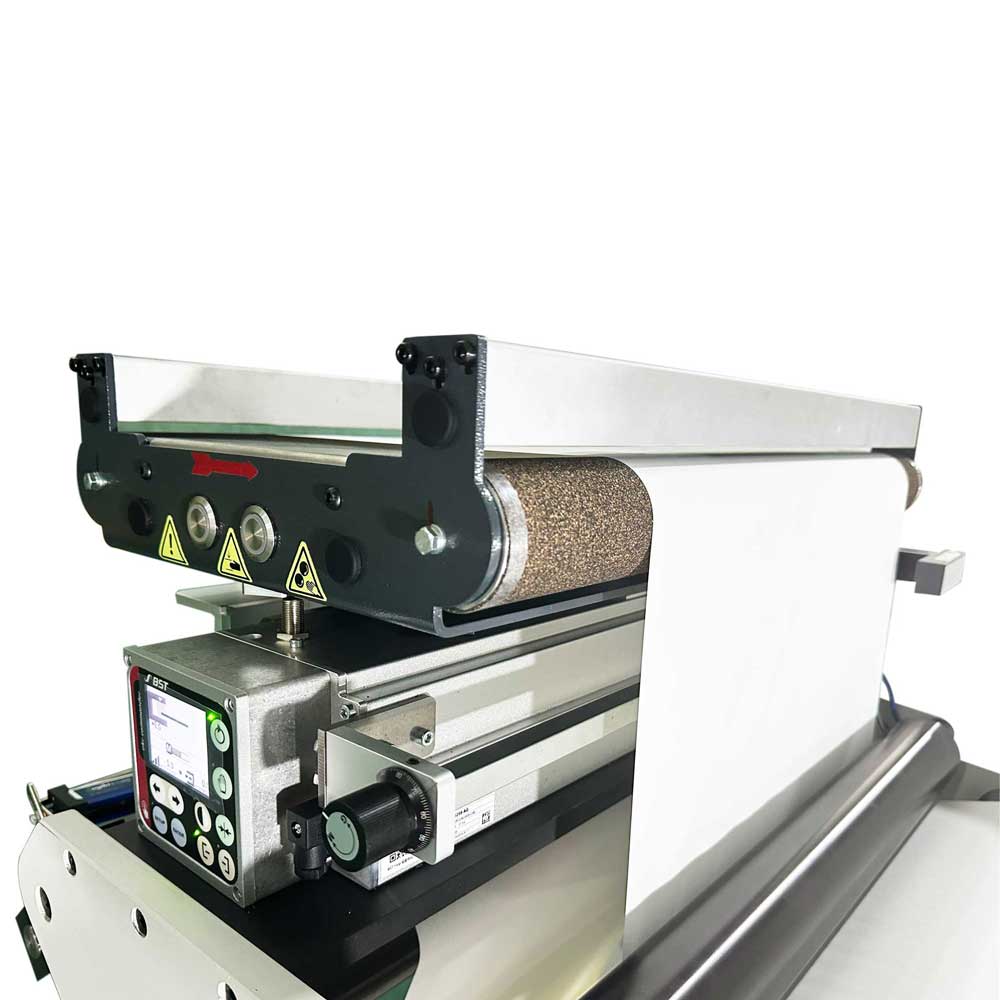

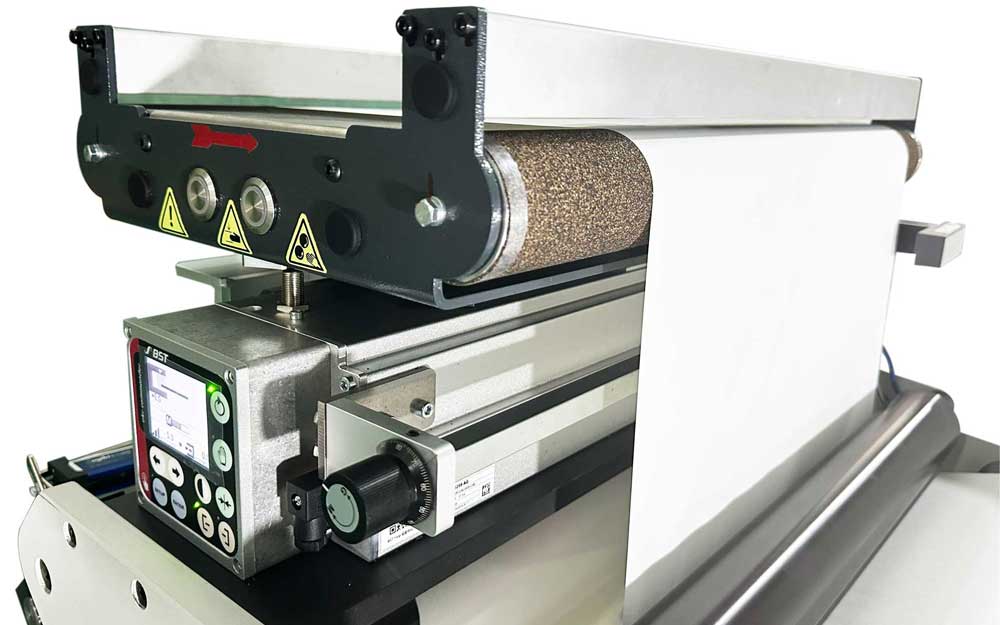

The narrow web high speed slitting machine adopts high-precision specialized cutting tools, and is equipped with a simulation correction system and servo tension control system. The slitting accuracy is very high, which can ensure smooth and burr free slitting edges and ensure product quality.
High Speed and Efficiency
The high cutting efficiency is also a major highlight of our equipment, which adopts full servo winding and unwinding, taper tension control system, correction system, and user-friendly touch screen control. The maximum cutting speed can reach 300m/min, enabling continuous production and significantly improving production efficiency.
High degree of automation
This device can be equipped with a double winding reel fully automatic rotating and changing device, which maximizes production efficiency and supports the exchange of various specifications of inflatable shafts (generally with diameters of 1 inch/1.5 inches/3 inches); Support counting meters and quantities during label cutting process, and automatic shutdown can be set in case of material shortage. Easy to operate, reduces manual intervention, and improves production stability and reliability.
has a wide range of applications
The device has a wide range of applications and can be used for cutting various materials such as paper, adhesive labels, films, copper foils, aluminum foils, etc., fully meeting the diverse cutting needs of different industries.
Product Parameters
| Name | Parameters of narrow web high speed slitting machine |
| Scope of adaptation: | Daily chemical, pharmaceutical, and material industries mainly rely on paper, while film materials have a thickness of no less than 40 microns. |
| Roll width range: | 40mm～550mm |
| Maximum unwinding diameter: | Φ800mm |
| Maximum winding diameter: | Φ 450mm (upper retractable shaft), Φ 800mm (lower retractable shaft), configured according to requirements. |
| Dimensions of the inflation shaft for unwinding and unwinding: | 3-inch (standard for Φ 76mm), optional 1-6 inch inflation shaft; |
| Mechanical speed: | 350m/min winding direction: can run in both internal and external directions; |
| Unwinding tension range: | 15～120N |
| Unwinding tension accuracy: | ±5N |
| Range of winding tension: | 15～120N |
| Precision of winding tension: | ±5N |
| Pressure requirement: | 0.4MPA-0.6MPA |
| Slitting speed | 350m/min |
| Unwinding width | 550mm |
| Unwinding Diameter | ⌀900mm |
| Rewinding Diameter | ⌀450mm |
| Machine weight | 1700kg |
| Installation dimension | 2200*1560*1350mm |

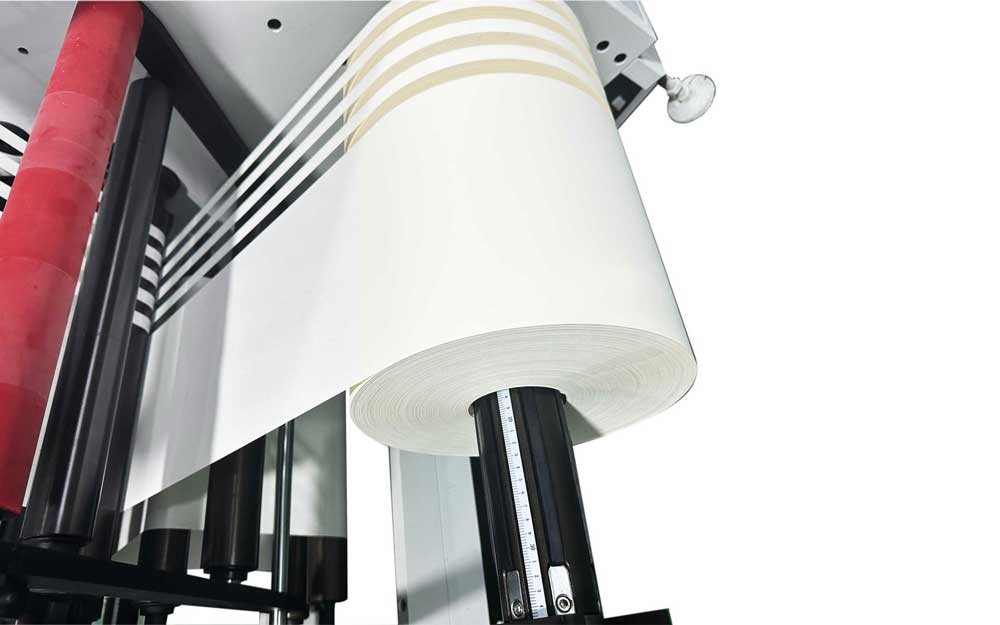

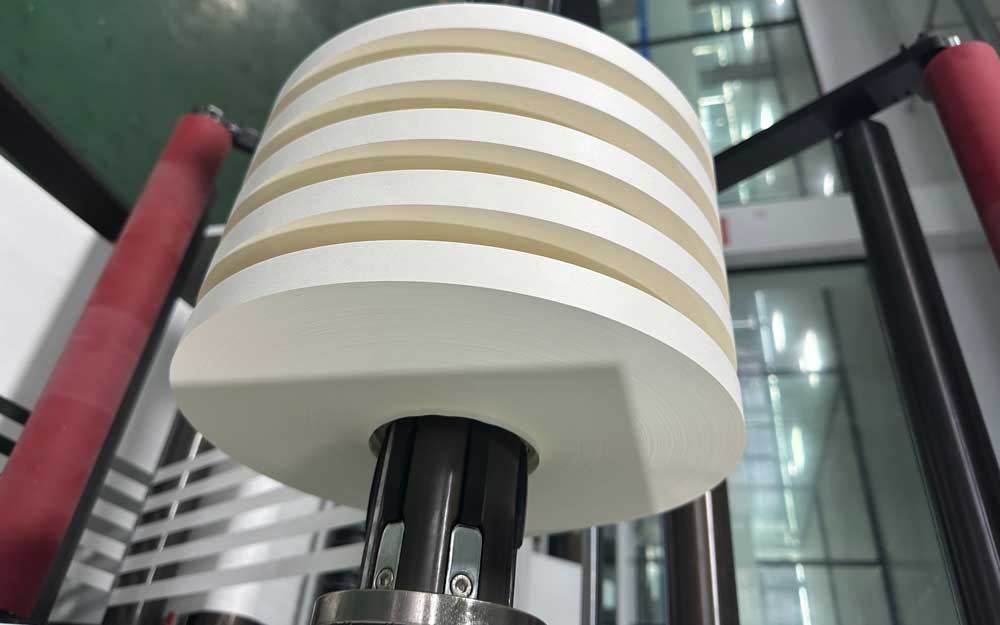

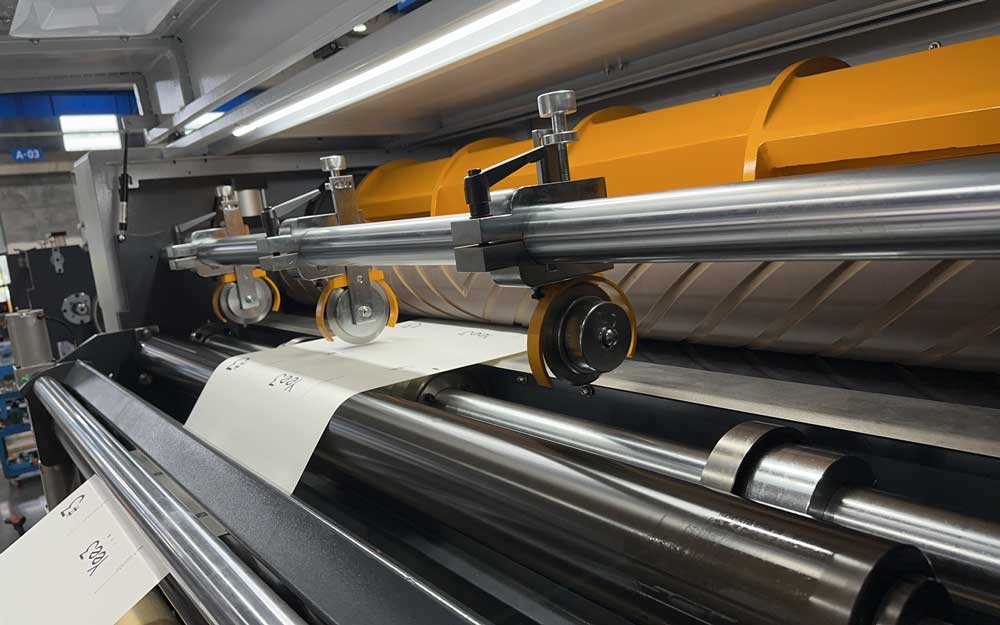

Product Display

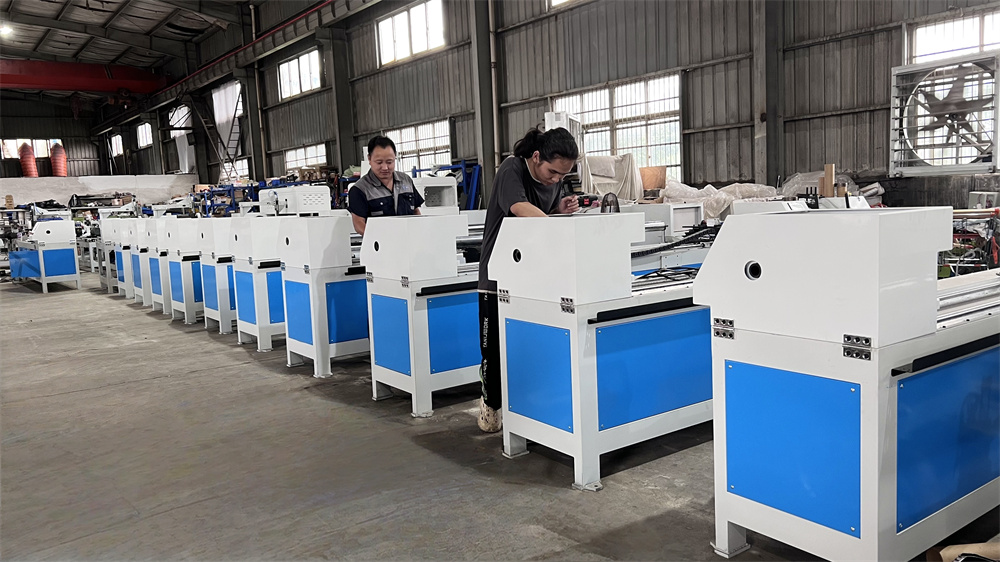

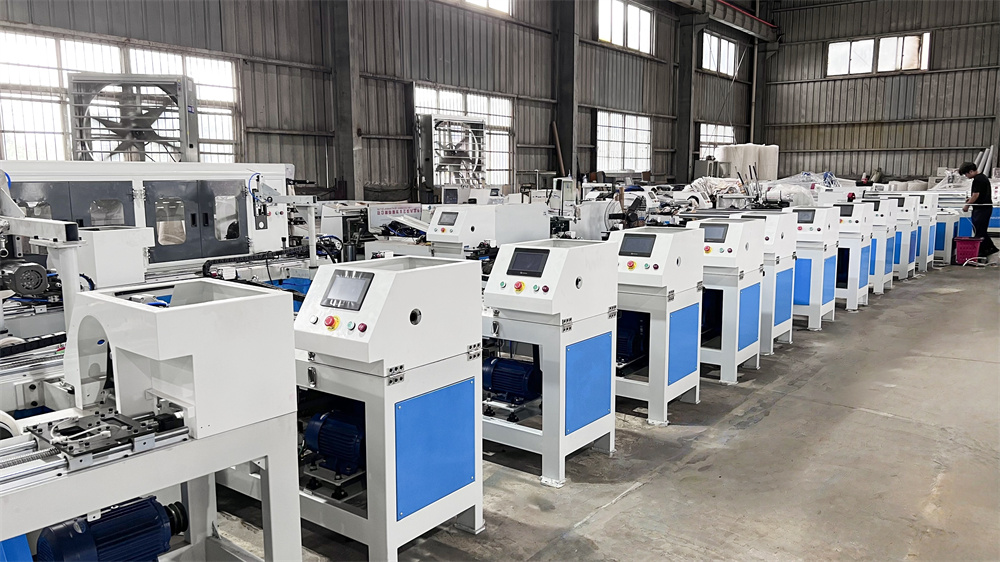

our factory
